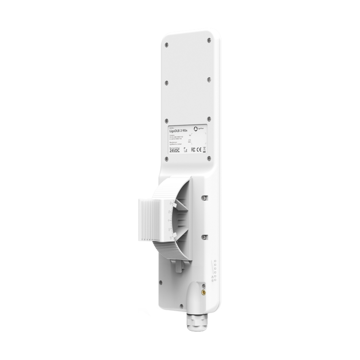

LigoDLB 2-90n
A 2.4GHz Base Station with 802.11n and a 16dBi 90° Sector Antenna for Short-to-Mid Range PTP/PTMP Scenarios
- 2.402 – 2.492 GHz support
- 80,000 PPS
- 170 Mbps capacity
- High output power 31 dBm radio
- Integrated 16 dBi directional dual – polarized sector antenna
- Powerful OS
- Smart polling data transmission protocol (iPoll 3)
- Weather proof (IP-65 rated) design
- Free NMS (Infinity Controller)
- Responsive HTML 5 based GUI
- Wall and pole mounting option
- Description
- Features
- Specification
- Ordering Info
- Reviews (0)
Description
Distance Recommendations
PTP mode
Not applicable
PTMP mode
10 km (6.21 mi)
New Hardware platform
Powerful new generation CPU ensures better performance delivering higher up to 170 Mbps capacity and almost 2 X higher packet per second rate (80000). Narrow (5 and 10 MHz) channel support ensures steady performance in noisy environments. More RAM improves the performance with multiple users connected to a single base-station and larger flash stores a 2nd failover firmware image.
Integrated surge protection
3 kV line to ground and 1 kV line-to-line protection allows operating in a harsh weather conditions and unstable electrical installations.
DLB Series is Made to Excel in
Internet Access
Video Surveillance
Rural Connectivity
Small Form Factor
LigoWave presents a new smaller form for the base station’s enclosure, which is lighter yet still retaining IP66-rated weather protection. Smaller packaging reduces freight costs and makes them less obvious. The new design has no metal parts, which makes them lighter and corrosion resistant.
Innovative Mounting Bracket
The adjustable mounting bracket is very easy to assemble and install. It consists of two easy-to-connect parts that allow tilting the device up and down when installing on a pole.
Pole Mounting
Tilt the device in any of four directions—up, down, left, or right—with the DLB Pole Mount, thus ensuring ideal precision tilting and optimum link adaptability.
LigoWave OS
LigoWave OS contains all of the essential features for establishing fast, strong, and reliable PTMP networks. The LigoWave OS includes IPv6 Bridge & Router Support, SSDP & Bonjour Device Discovery Options, Flexible Traffic Shaping, DHCP Option 82, and more. The user interface is built on HTML5 with responsive design. The LigoDLBac Series are backward-compatible with LigoDLB devices through the iPoll 3 Proprietary Protocol.
iPoll 3: Enhanced Performance Protocol
LigoWave’s iPoll™ PTMP (Point-to-Multi-Point) proprietary protocol is an innovative solution, eliminating transmission congestion and close-cluster interference created in wireless PTMP installations.
Hotspot scenario support
Starting with v7.52, Infinity firmware can be used on LigoDLB devices for outdoor hotspot and related applications. The firmware upgrade converts the DLB base station from a PTP/PTMP device into an access point for outdoor hotspot networks.
LinkCalc
LinkCalc is LigoWave’s free wireless outdoor link planner and bandwidth calculator. It allows users to design wireless PTP/PTMP networks using virtual maps without the need for on-site field surveying or specialized tools. The data provided with LinkCalc can also be used to quote potential customer projects.
LigoWave’s DLB 2-90n delivers the highest performance and stability available in the 2.4GHz Base Station class. This product combines a robust, highly advanced 802.11n radio core containing MIMO 2×2 technology with an integrated, high gain, dual polarized, 100° sector antenna. The device is powered by a reliable, advanced, and feature-rich operating system, allowing the creation of high throughput, stable wireless networks quickly and effectively. Although the DLB 2-90n was designed mainly as a Base Station it also supports client-operating mode, which greatly extends the possible application scenarios. The smart dynamic polling based protocol (iPoll 3) ensures reliable communication even in congested areas with 64 client devices connected to a base-station. Equipped with LigoWave’s dual firmware image feature, remote software upgrades are assured even if a power failure interrupts the process. The device will restart using the prior firmware in the event of an upgrade failure. The enclosure is made of polycarbonate plastic with UV inhibitors to provide years of outdoor exposure in direct sunlight without cracking. The DLB 2-90n was designed and tested to meet an IP-65 rating as well as vibration, temperature, drop, salt, fog, and electrical surge standards to ensure a high level of reliability unsurpassed in the industry. It is equipped with a grounding lug and a grounded 24-volt PoE to allow a professional installation, resistant to electrical surges. The mounting bracket permits installation on a wall or a pole and provides up to 30 degrees of down-tilt adjustment.
New form factor
The shape of the enclosure is now smaller, lighter and retains the IP-66 weather protection rating. Smaller packaging reduces freight costs and makes them less obvious. The new LigoDLB 2-90n design has no metal parts, which makes them lighter and corrosion resistant.
New mounting
The adjustable mounting bracket is very easy to assemble and install. It consists of two easy to connect parts that allow tilting the device up and down when installing on a pole. A metal strap is included to securely tighten the device. This design includes additional reinforcements and thicker materials to ensure survival in extreme climate conditions.
OS
The DLB OS is a highly functional and easy to use operating system. This powerful and flexible operating system ensures flawless operation of all DLB hardware devices and effortless setup for those deploying the networks.
- Smart polling data transmission protocol (iPoll 3)
- Dual-firmware image support
- Responsive HTML 5 based GUI
- 170 Mbps capacity
- 80,000 PPS rate
- IPv6 support
- Infinity controller compatible
Specifications
| Product/ distance recomendation | PTMP mode | PTP mode | PTP mode (full capacity) |
| DLB 2-90n | 10km/ 6.21mi | N/A | N/A |
Wireless
| WLAN Standard | IEEE 802.11 b/g/n, iPoll (Proprietary) |
| Radio Mode | MIMO 2×2 |
| Radio Frequency Band | 2.402-2.492GHz (FCC 2.412-2.462GHz) |
| Transmit Power | Up to 31dBm (Country Dependent) |

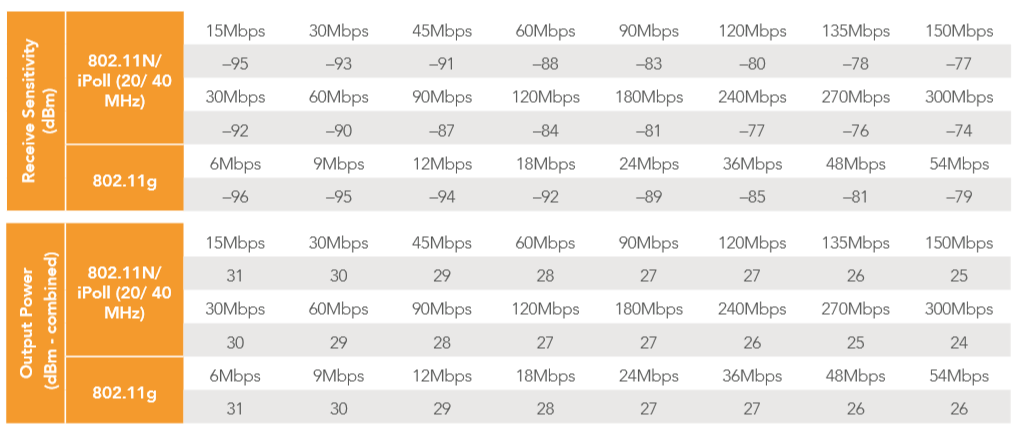

| Receive sensitivity | Varying between -96 and -74 dBm depending on modulation |
| Channel Size | 5,10, 20, 40MHz |
| Modulation Schemes | 802.11 g/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
802.11 b: DSS (CCK, DQPSK, DBPSK) |
| Data Rates | 802.11 n: 300, 270, 240, 180, 120, 90, 60, 30Mbps
802.11 g: 54, 48, 36, 24, 18, 12, 9, 6Mbps 802.11 b: 11, 5.5, 2, 1Mbps |
| Error Correction | FEC, Selective ARQ |
| Duplexing Scheme | Time division duplex |
Antenna
| Type | Integrated Directional Dual-Polarized Panel |
| Gain | 16dBi |
Wired
| Interface | 10/100 Base-T, RJ45 |
Software
| Wireless operating modes | Access point (auto WDS), access point (iPoll 3), station (WDS, iPoll 3), station (ARP NAT) |
| Wireless techniques | Smart station polling, smart auto-channel, adaptive auto modulation, automatic transmit power control (ATPC) |
| Wireless security | WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation |
| Wireless QoS | 4 queues prioritization on iPoll 3 |
| Network operating modes | Bridge, router iPv4, router IPv6 |
| Network techniques | Routing with and without NAT, VLAN |
| WAN protocols | Static IP, DHCP client, PPPoE client |
| Services | DHCP server, SNMP server, NTP client, router advertisement daemon, ping watchdog |
| Management | HTTP(S) GUI, SSH, SNMP read, Infinity controller, Telnet |
| Tools | Site survey, link test, antenna alignment |
Physical
| Dimensions | Length 430mm (16.9 ‘’), Width 150mm (5.9 ‘’), Height 40mm (1.6 ‘’) |
| Weight | 1000g (2.2lb) |
| Mounting | Combination wall / pole mount included |
Power
| Power supply | 12 – 24 VDC passive PoE (24 V passive PoE adapter is included in the package) |
| Power consumption (max) | 4.5W |
| Power source | 100 – 240 VAC |
Environmental
| Operating temperature | -40°C (-40 F) ~ +65°C (+149 F) |
| Humidity | 0 ~ 90 % (non-condensing) |
Management
| System monitoring | System monitoring: SNMP v3, Syslog, Web UI and Infinity Controller |
| Configuration | WebUI, Infinity Controller |
Regulatory
| Certification | FCC/IC/CE |

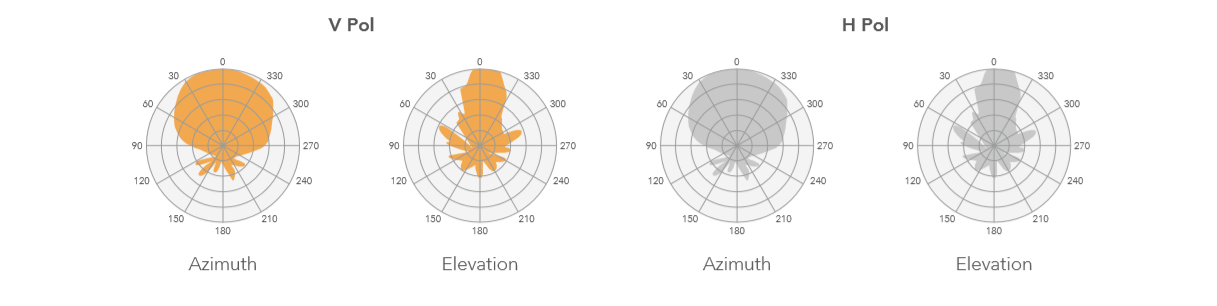

Antenna specifications
Internal antenna
| Frequency range | 2.4-2.5GHz |
| Gain | 16dBi |
| Polarization | Dual linear |
| Cross-pol Isolation | 25dBi |
| VSWR | 1.7:1 |
| Azimuth beamwidth (H pol) | 100° |
| Azimuth beamwidth (V pol) | 100° |
| Elevation beamwidth | 30º |
